PMC-53A
has been assessed and certified by
NMIM (National Metrology Institute of Malaysia)
PMC-53A meets the requirements of International Organization of Legal Metrology (OIML) Recommendations R46
(Active Energy Meters) and fulfils the requirement of weights and Measures Act, 1972.
(Approval Number: ATS-0026-20) for the PMC-53A MID model

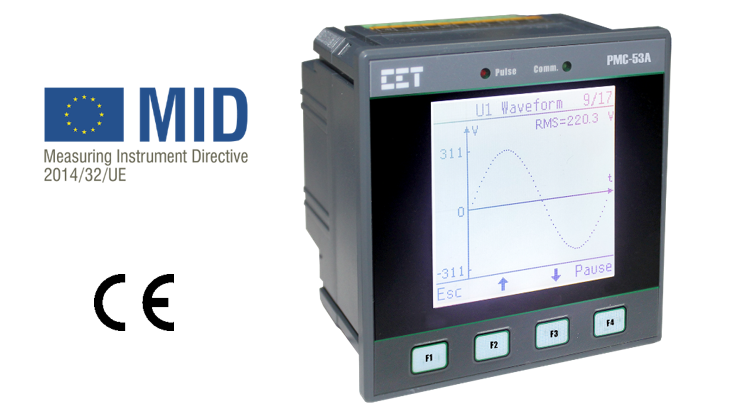

PMC-53A complies with the EN50470-3 Class C Standard which is comparable to the IEC 62053-22 Class 0.5S. PMC-53A is equipped with a dot-matrix LCD as well as a RS-485 port supporting Modbus RTU, BACnet MSTP, N2 and DNP protocols as standard features. The optional features include 4xDI for status monitoring, 2xRO for control and alarming, 2xSSR for energy pulsing as well as 4MB log memory. With a DIN form factor measuring 96x96x88mm, it is perfectly suited for industrial, commercial and utility applications.
Please contact sales@cet-global.com for more information.
