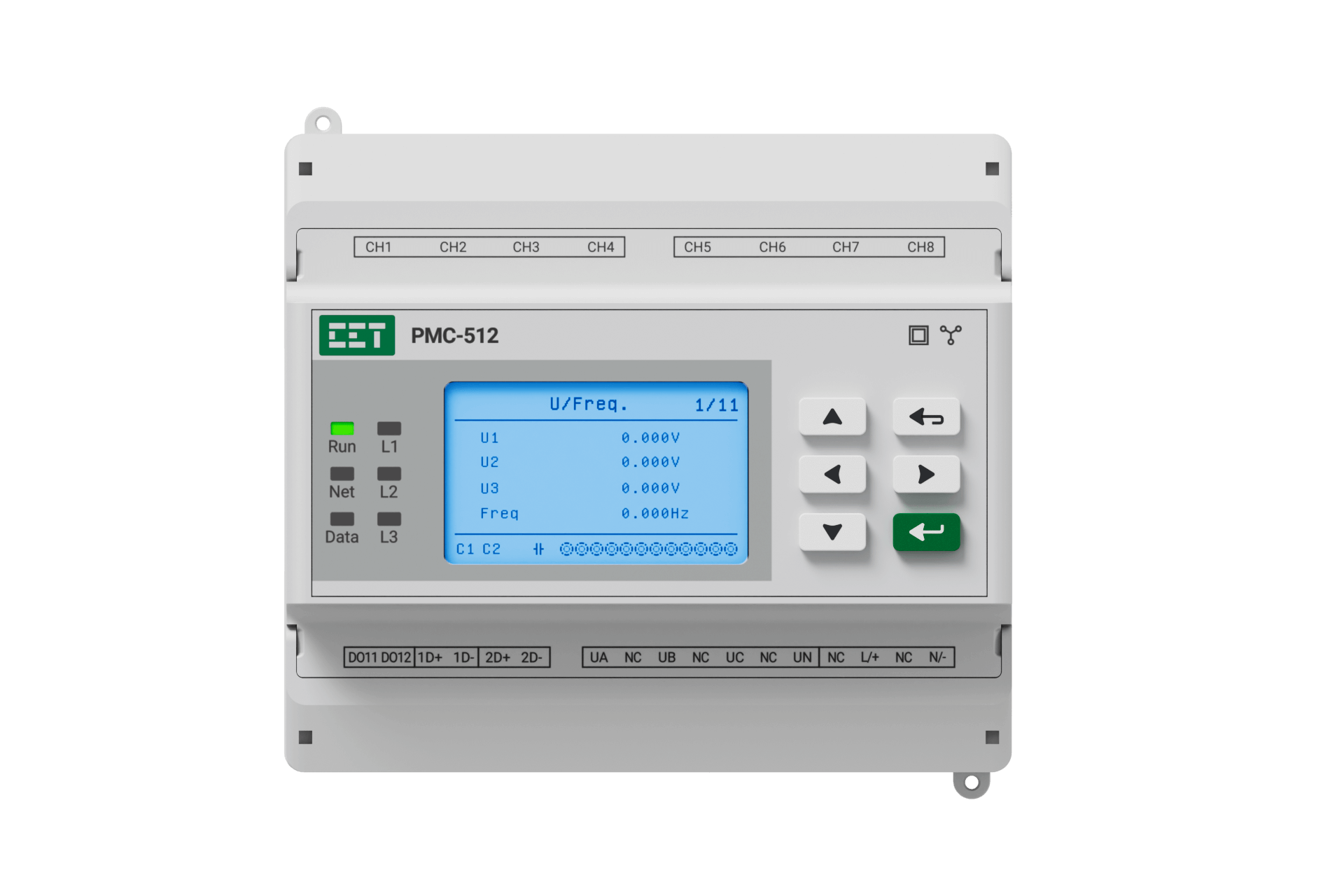

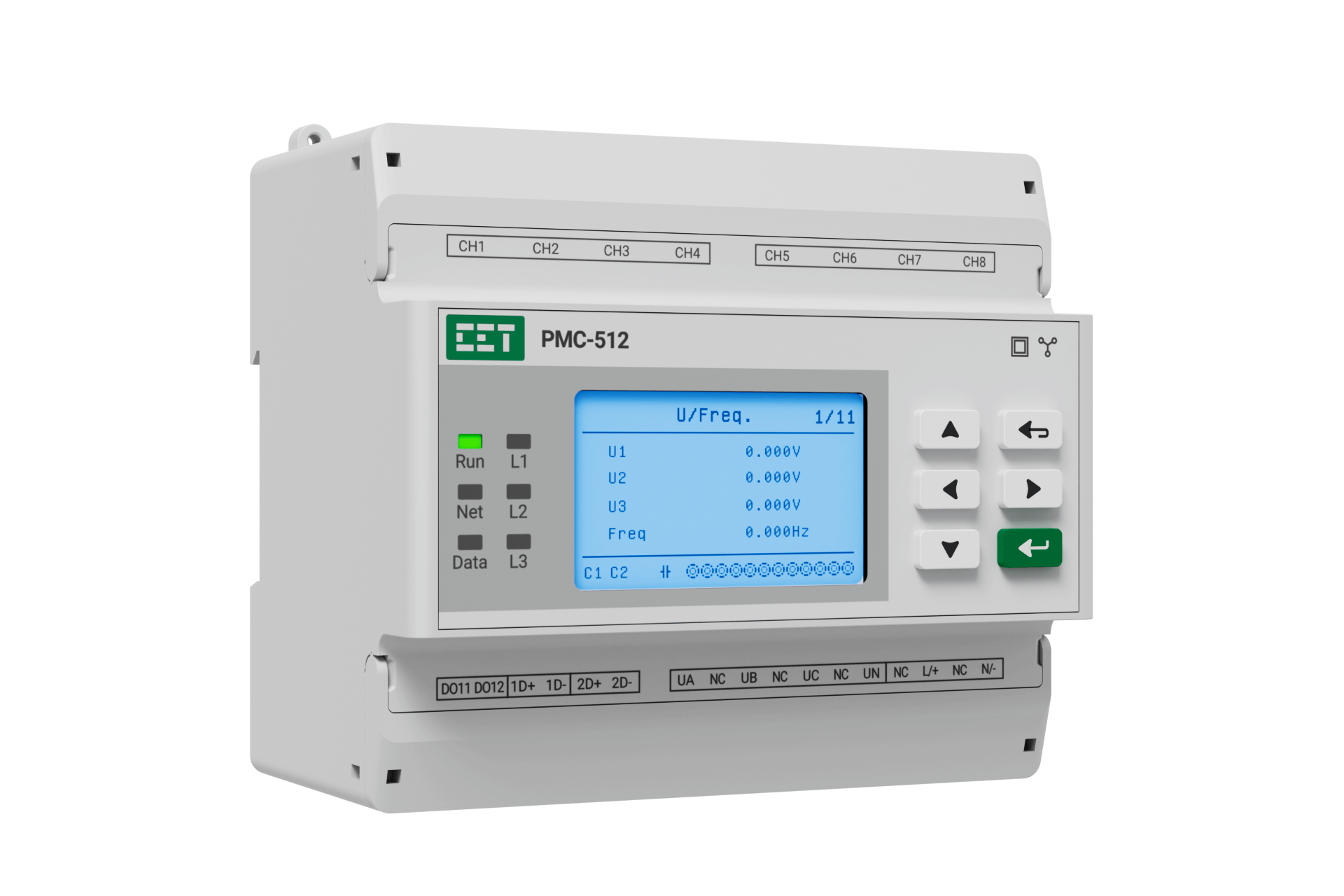

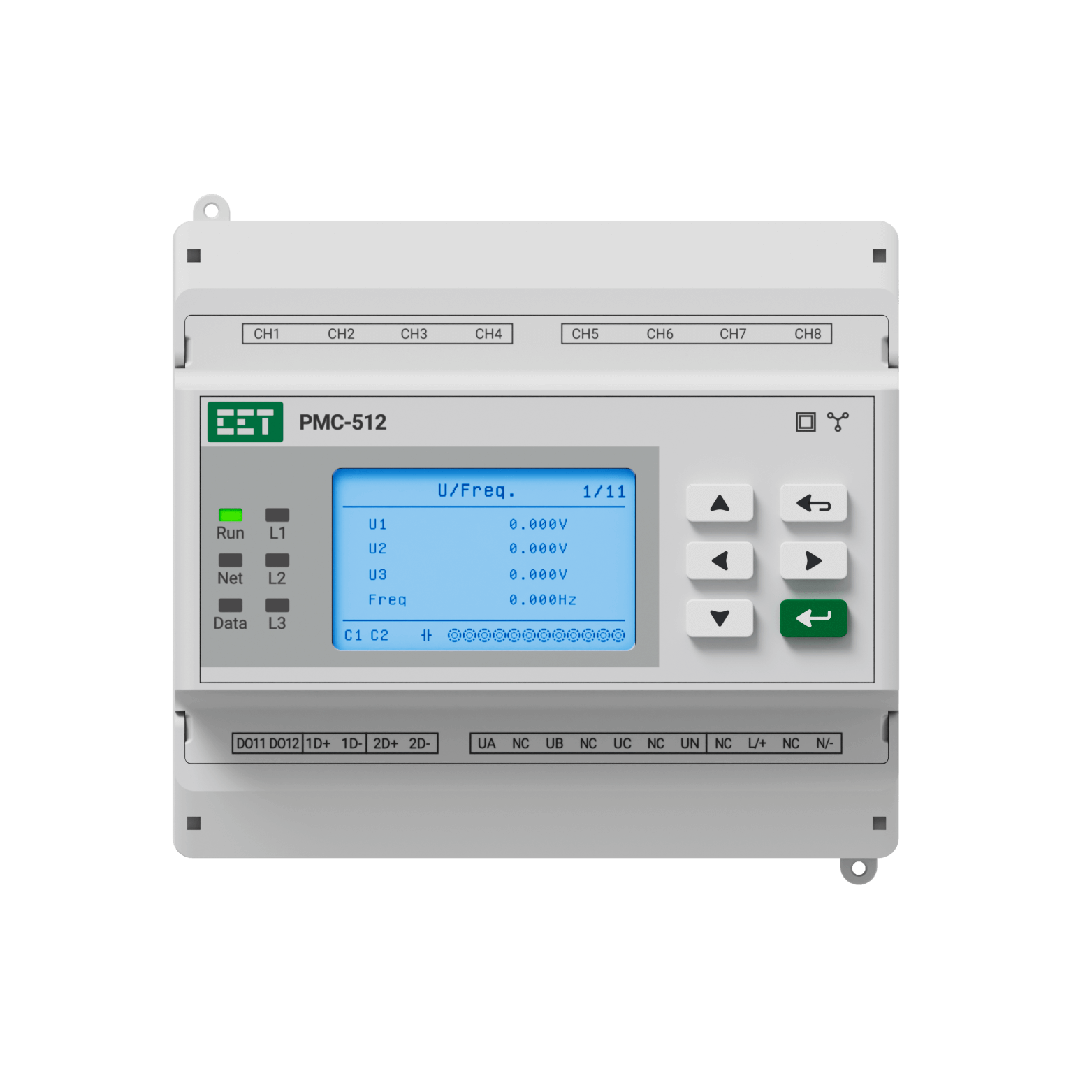

PMC-512-M
Product Overview
The PMC-512-M is CET’s latest offer for the economical multi-circuit monitoring in Data Centers, Telecom Base Stations, and Industrial & Commercial Buildings. Housed in a compact DIN Rail Mount enclosure, the PMC-512-M is perfectly suited for high-density metering applications. It features quality construction with multifunction and Class 1 Energy Measurements. The PMC-512-M comes standard with a built-in Dot-Matrix LCD display, and one DO for control or alarming. It optionally provides up to 4xIr Input for Residual Current Measurement, 4xNTC Input for temperature measurements, as well as other I/O options for different applications. The standard SOE Log records all setup changes, alarms and DO operations in ±1ms resolution. With two RS-485 ports supporting Modbus RTU and an optional 10Base-T/100Base-TX Ethernet Port, the PMC-512-M can easily be deployed in an intelligent, multi-circuit monitoring solution.
