PMC-53A
Product Overview

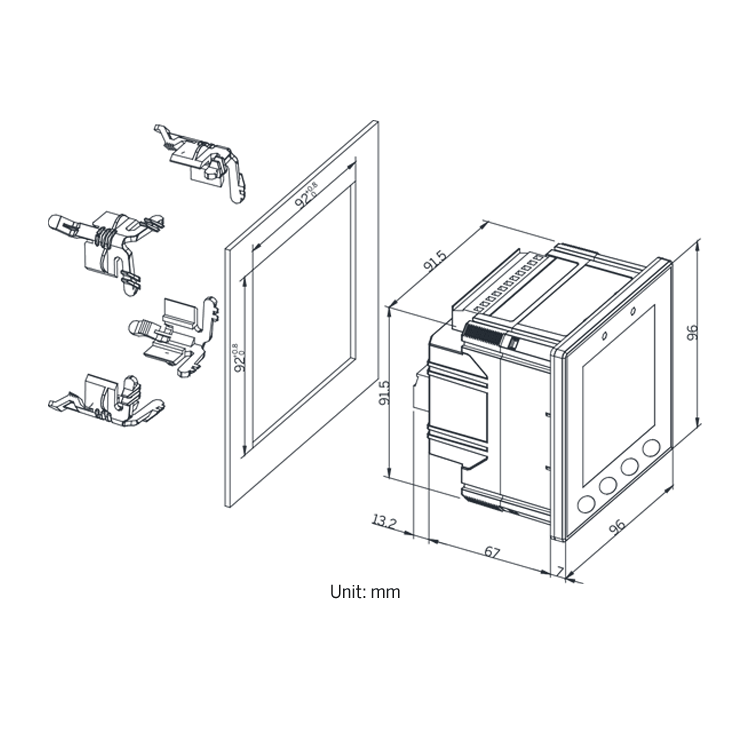

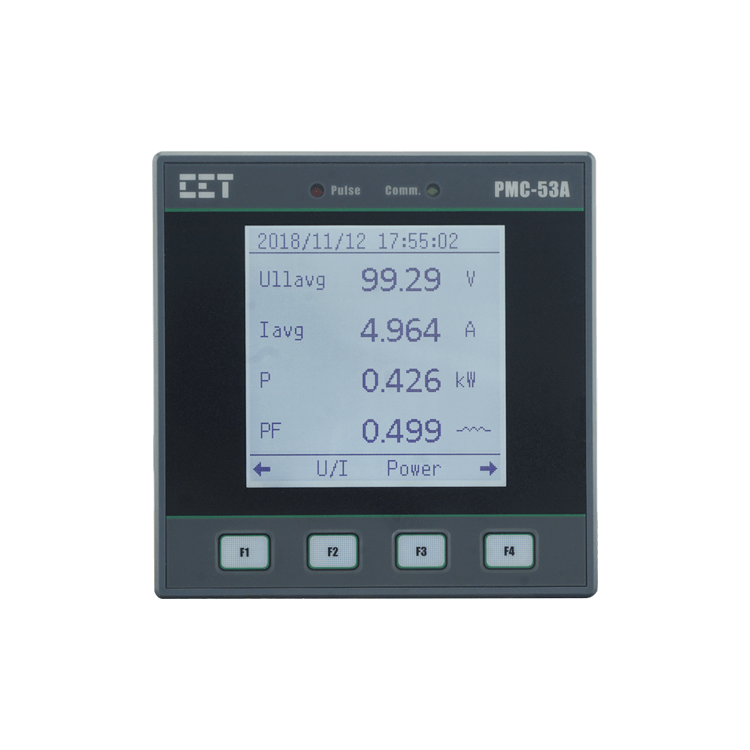

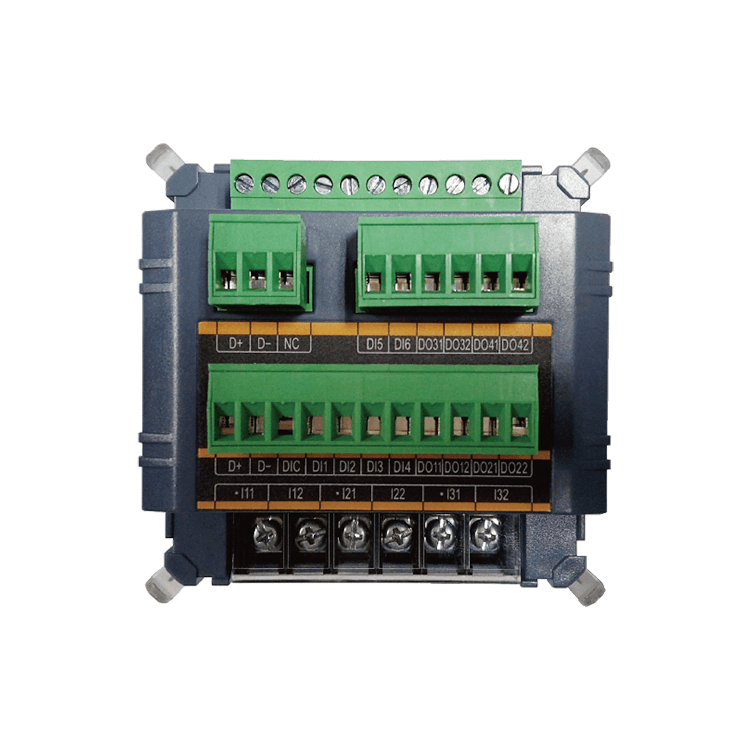

The PMC-53A Intelligent Multifunction Meter is CET’s latest offer for the low-cost digital power/energy metering market. The PMC-53A features quality construction, multifunction measurements and a large, backlit, Dot-Matrix LCD display that is easy to navigate and user friendly. Housed in a standard DIN form factor measuring 96x96x83.6mm, it is perfectly suited for industrial, commercial and utility applications. Compliance with the IEC 62053-22 Class 0.2S/0.5S, ANSI C12.1 Class 0.2 and EN 50470-1/3 Class C, it is a cost-effective replacement for analog instrumentation and is capable of displaying 4 measurements at once. It optionally provides I4 input for Neutral Current measurement, a second RS-485 port, up to six Digital Inputs for status monitoring, pulse counting or Tariff switching, up to four Relay Outputs for control and alarm applications, up to two Solid State Relays for energy pulsing as well as other I/O options for different applications. PMC-53A Catalogue (20201020S)
