PMC-S963
Product Overview

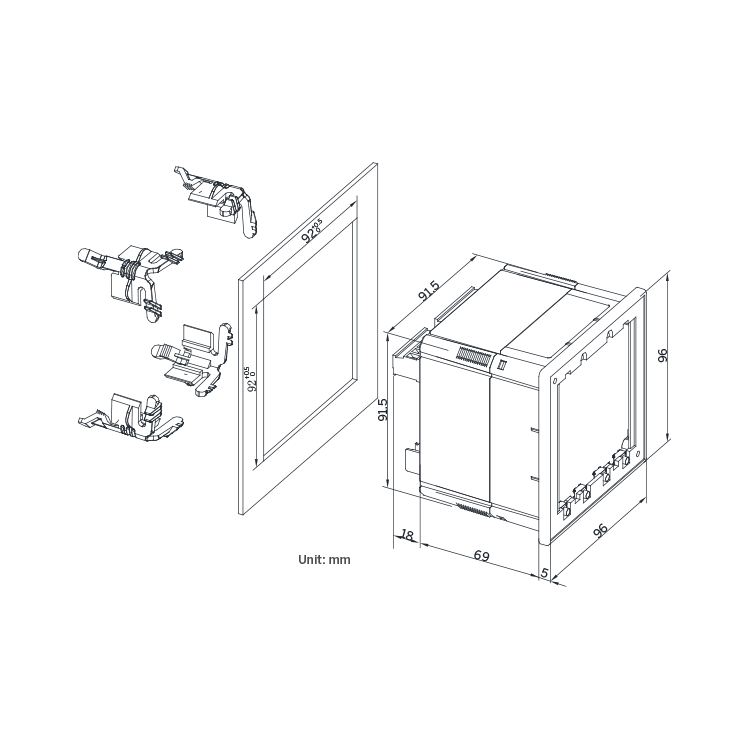

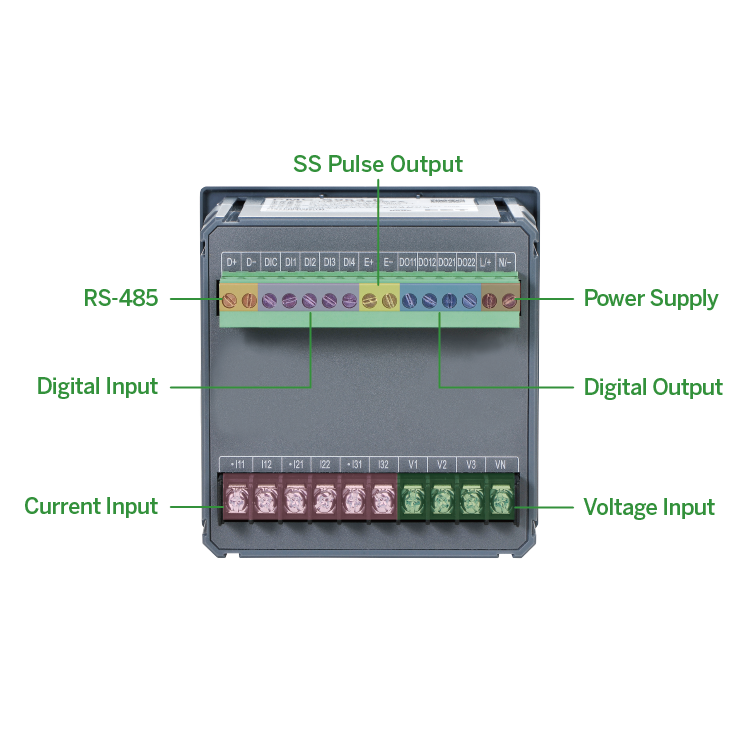

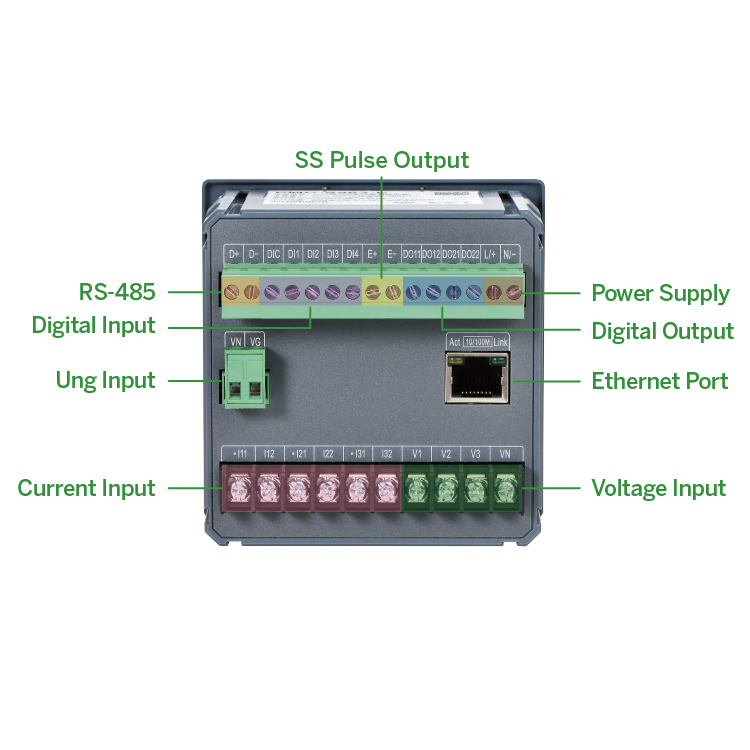

PMC-S963-C and PMC-S963-E represent CET’s latest offerings in the low-cost digital power/energy metering market. Housed in a standard DIN form factor measuring 96x96x92mm, these meters are ideal for industrial, commercial, and utility applications. Both models boast high-quality construction, multifunction measurements, and a large, backlit, 7-Segment LCD that ensures easy navigation and user-friendliness. Compliant with the IEC 62053-22 Class 0.5S Standard, they serve as cost-effective replacements for analog instrumentation, capable of displaying 3-phase measurements simultaneously. PMC-S963-C and PMC-S963–E come with 4xDI, 2xDO, and 1xSS Pulse Output as default features. Additionally, PMC-S963-E provides 1xUng for neutral-to-ground measurement, while PMC-S963-C offers an optional AO for analog measurement. Both models come with a standard RS-485 port supporting multiple protocols. Additionally, PMC-S963-E offers an extra 10/100BaseT Ethernet Port for easy integration into Energy Management Systems and Building and Utility Automation Systems.
