PMC-550D-X
Product Overview

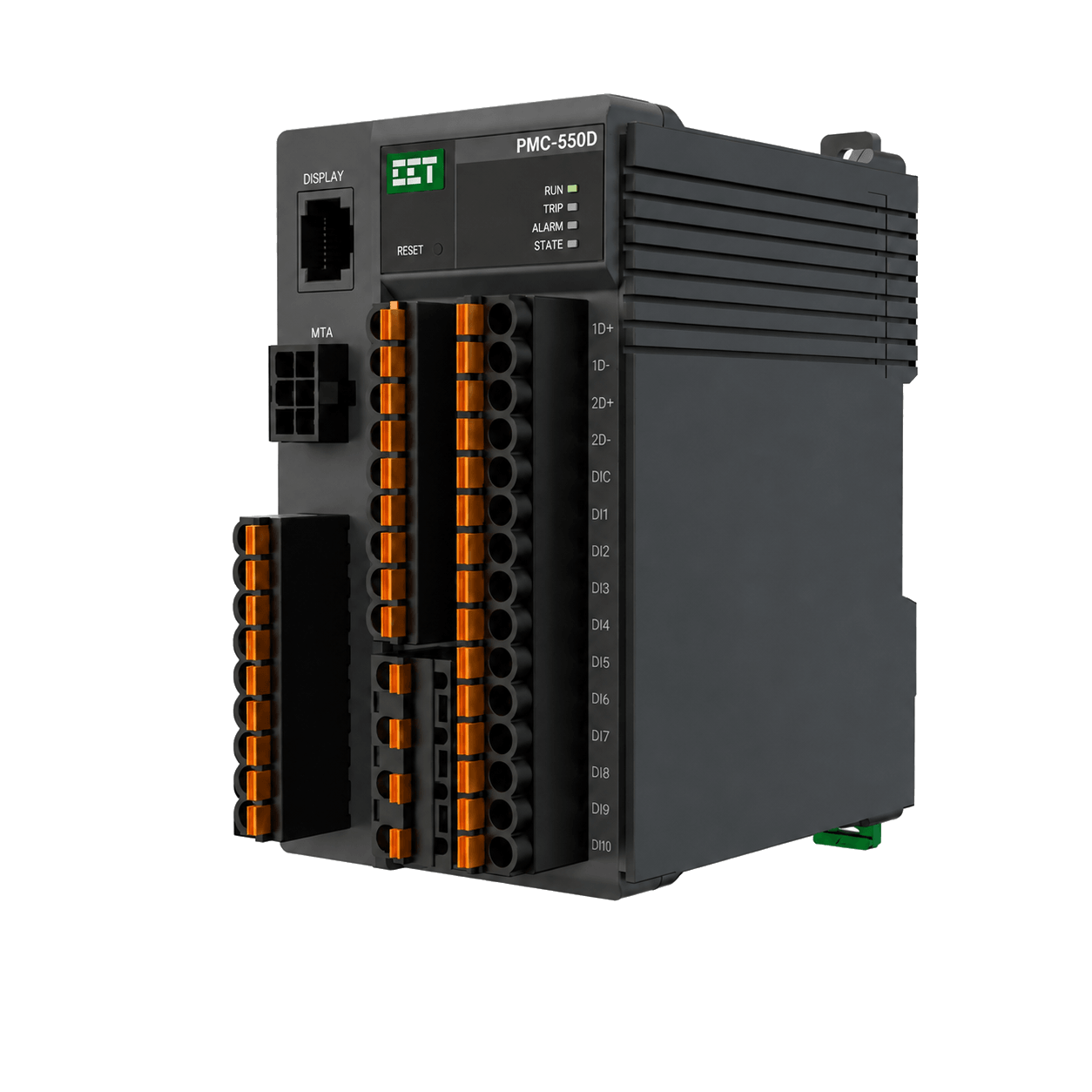

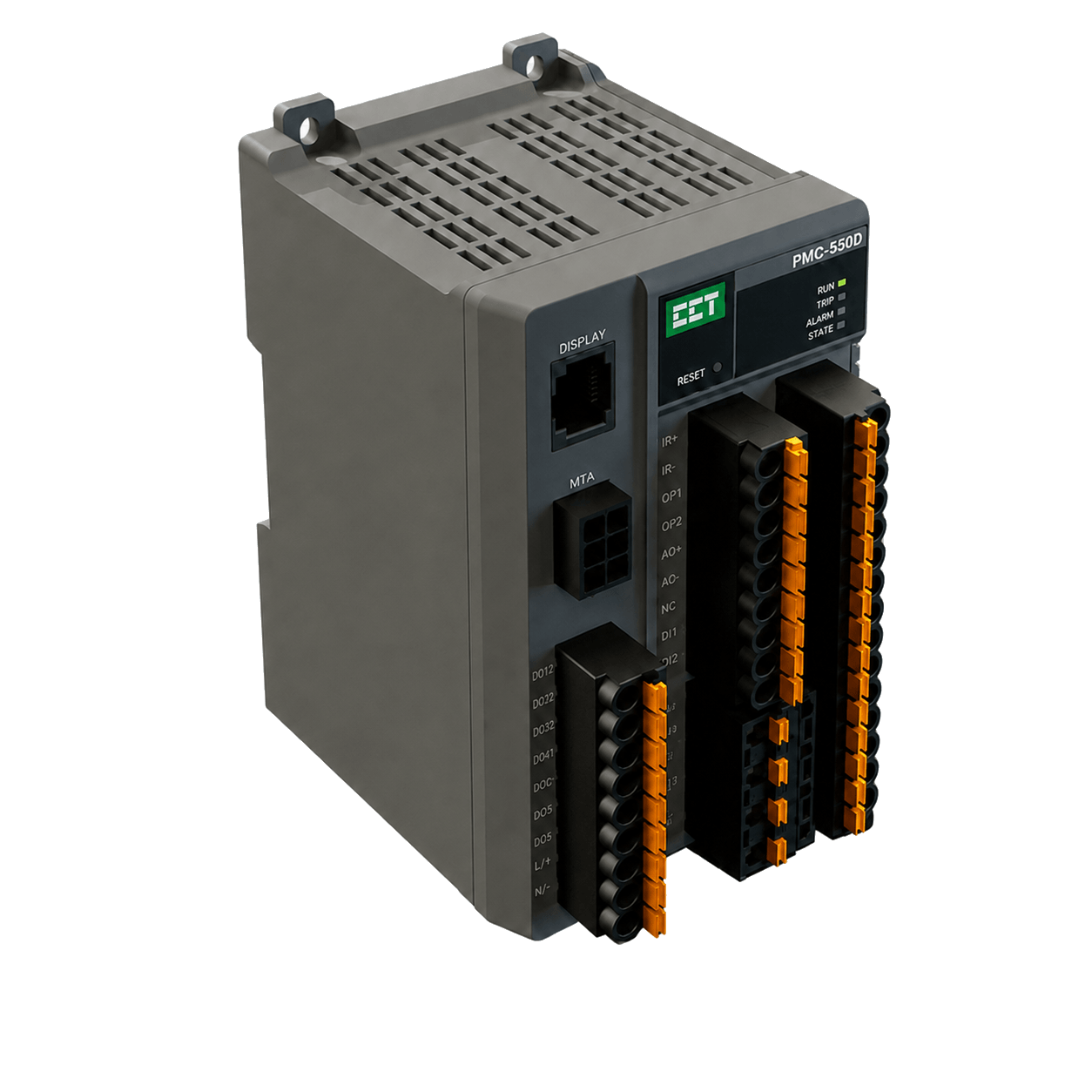

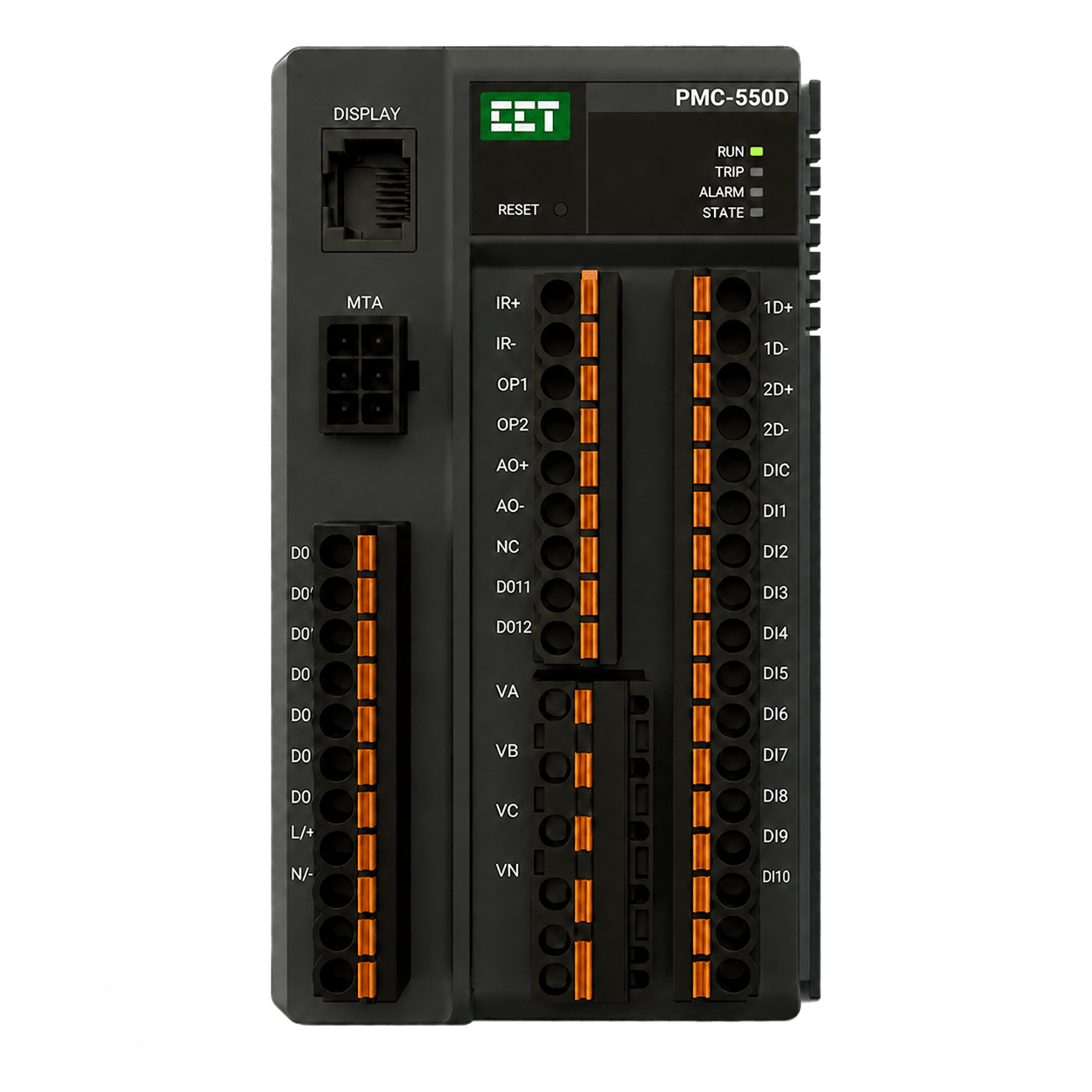

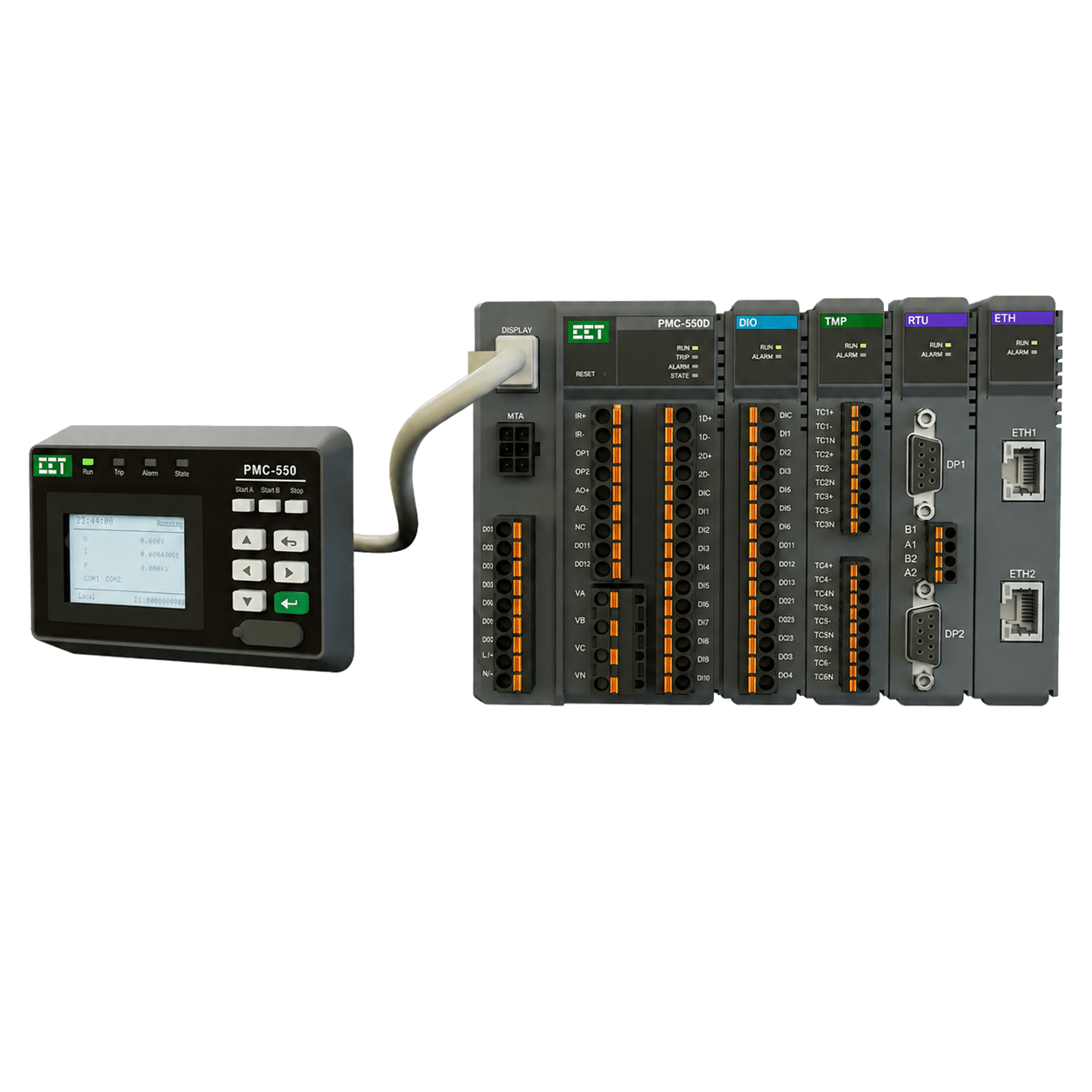

The PMC-550D-X Low-voltage Motor Protection and Control Device seamlessly integrates motor protection, control, temperature monitoring with a modular design. Featuring extensive I/O options on the main unit, including 10xDI, 5xDO, 2xRS-485 ports, 1x Analog Output, 1x Residual Current Input, 1x optional PROFIBUS DP, 1x optional PTC Input and 1x optional Analog Output, the device offers flexibility and expandability. Its modular design* allows easy expansion, connecting a standalone HMI module for monitoring and control, and up to 5 expansion modules in total, selectable from PMC-KDIO module with additional 6xDI and 4xDO each and others. The device supports Modbus RTU, with PROFIBUS DP available as an option. Equipped with a robust power supply, it ensures uninterrupted operation for 15 seconds during power interruptions. These versatile features make the device suitable for diverse industrial needs.
