PMC-230
Product Overview

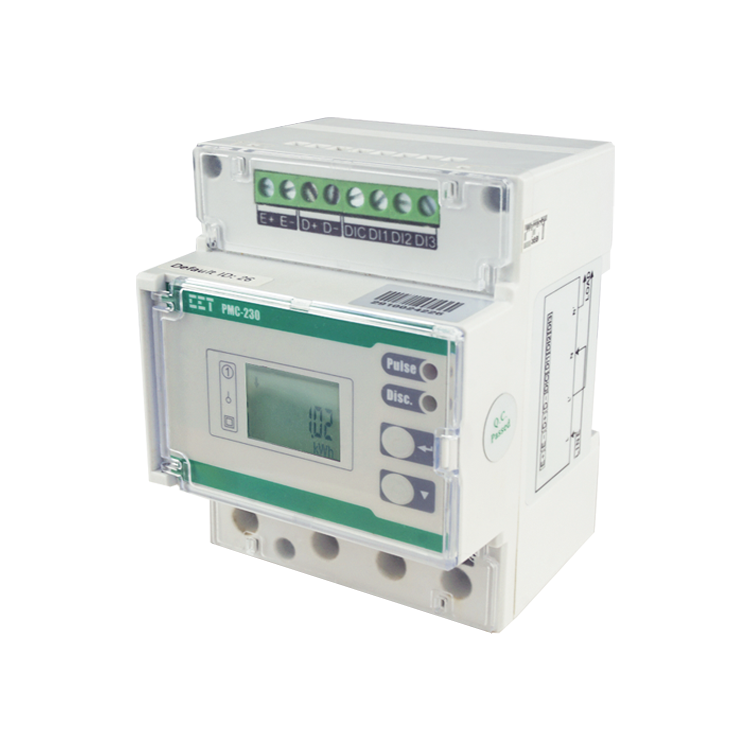

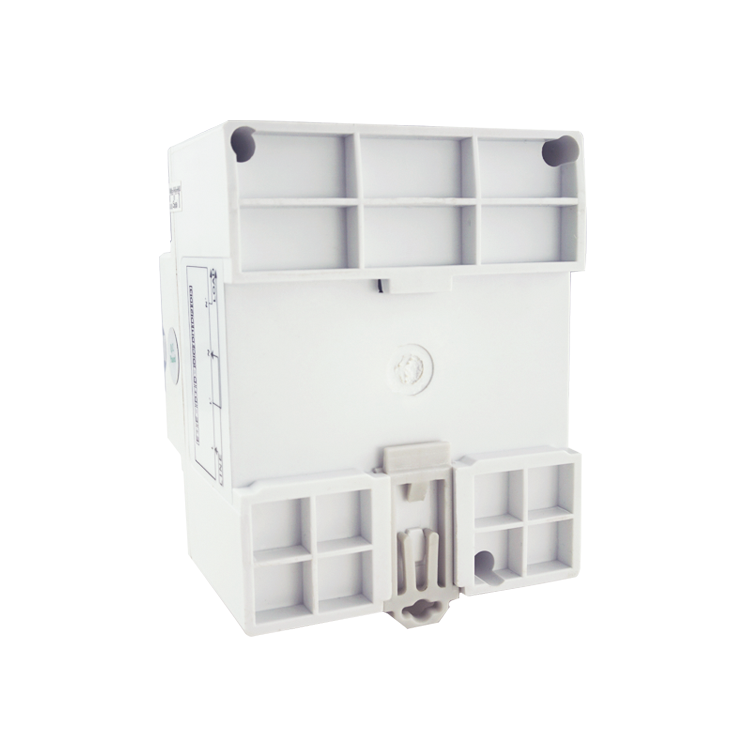

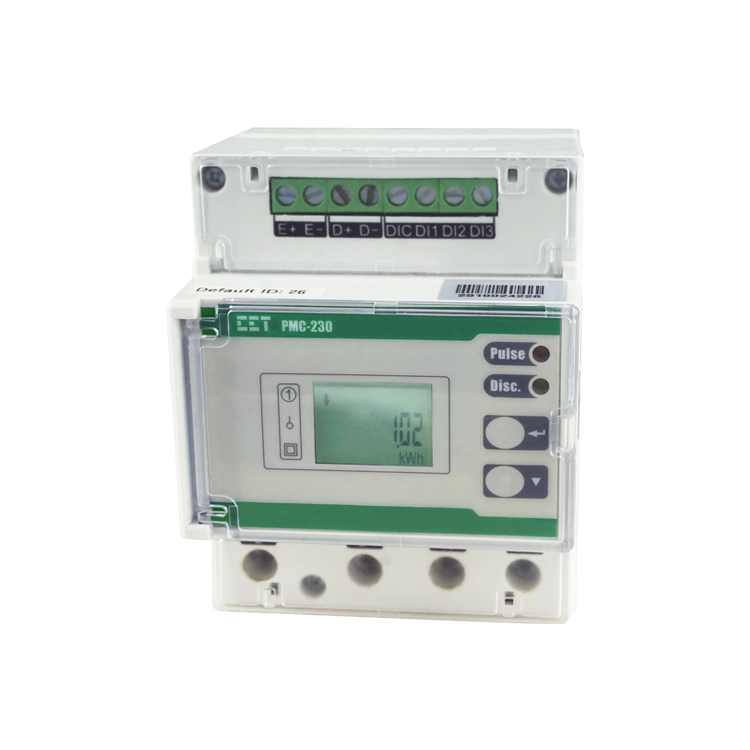

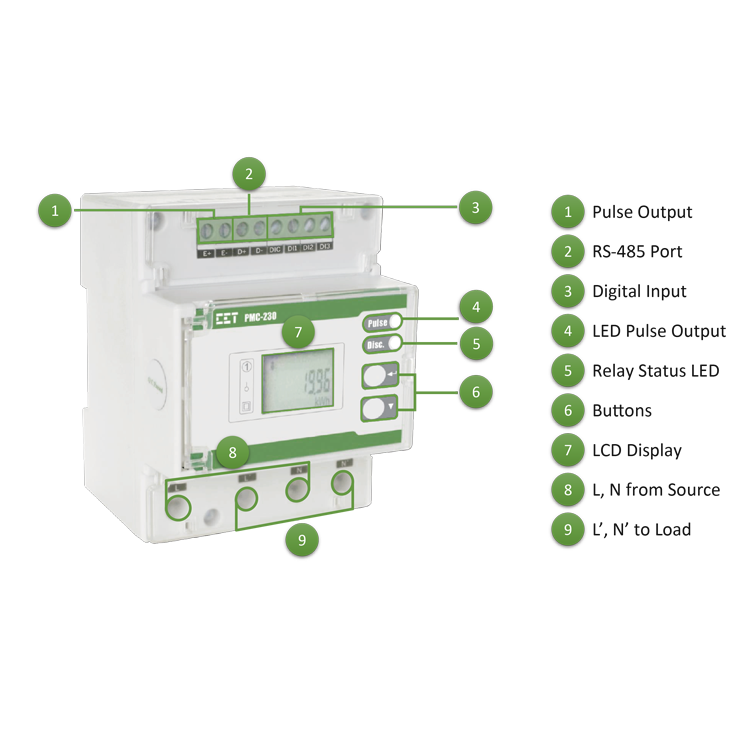

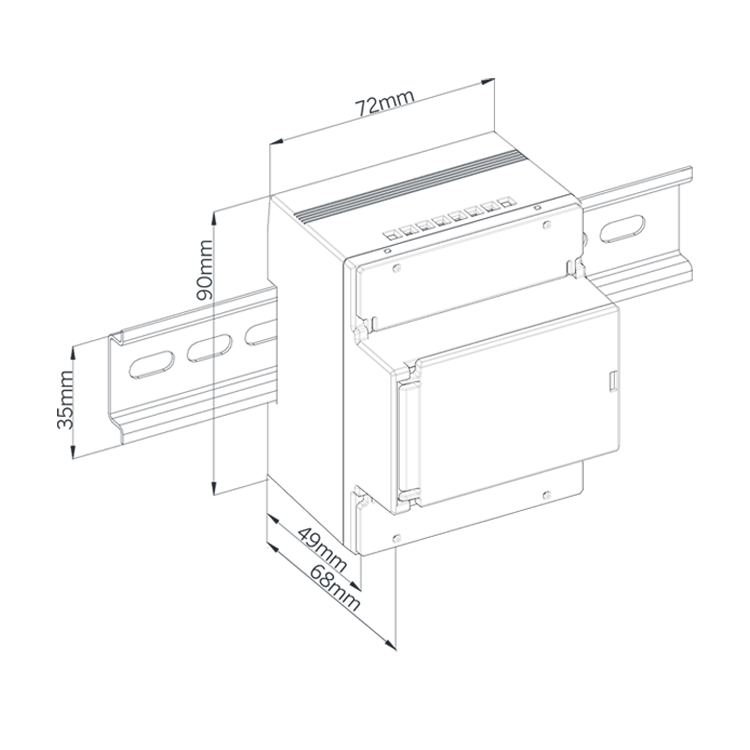

PMC-230 Single-Phase Multifunction Meter is CET's latest offer for the low voltage energy metering market featuring DIN-Rail mount, compact construction, 63A direct connect with an internal UC3 Disconnect Relay for compliance with Australia National Electricity Rules (NER). The PMC-230 also complies with the IEC 62053-21 Class 0.5 kWh Accuracy Standard and has received the Certificate of Approval from the National Measurement Institute (NMI) of Australia. With 4MB Log Memory, 3xDI, 1xLED and 1xSS Pulse Output for energy pulsing as well as a RS-485 port supporting Modbus RTU protocol as standard features, the PMC-230 becomes a vital component of an intelligent, multifunction monitoring solution for any Energy Management Systems.PMC-230 Catalogue (20240318S)
