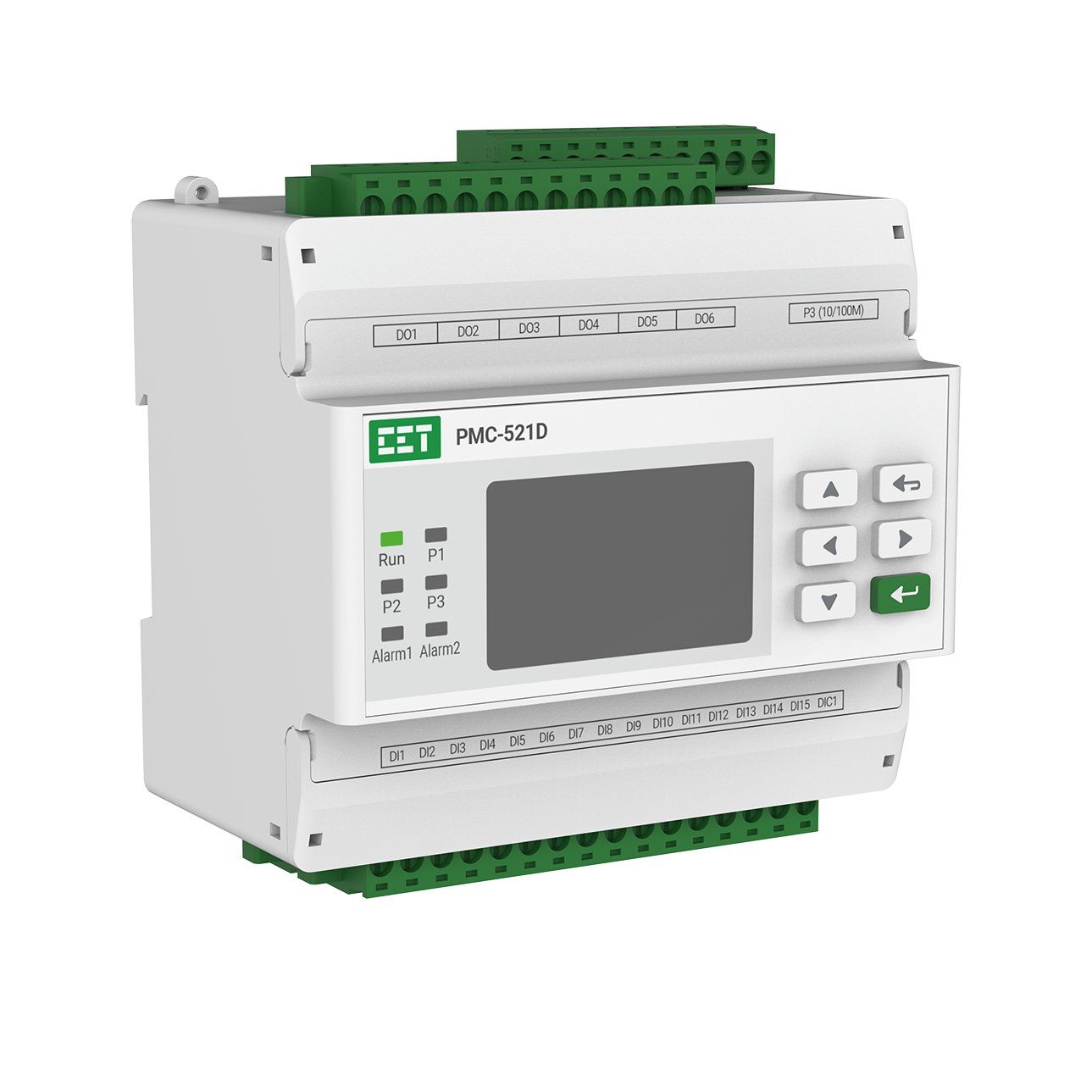

PMC-521D-A5
    • 21 channels for external status monitoring or utility pulse counting
    • 6 or 20 channels for remote control applications
    • Utility pulse counting for WAGES applications
    • Data Center, Substation, Building, Factory and Utility Automation
PMC-220-A6
    • DIN-Rail mount energy metering
    • Industrial, Commercial and Utility Substation Metering
    • Building, Factory and Process Automation
    • Sub-metering and Cost Allocation
    • NMI and MID compliant Energy Management
PMC-340-A6
  • DIN-Rail mount energy metering
  • Industrial, Commercial and Utility Substation Metering
  • Building, Factory and Process Automation
  • Sub-metering and Cost Allocation
  • NMI compliant Energy Management
PMC-340
  • Three-Phase Multifunction Meter
  • IEC62053-21 Class 0.5 (100A Direct Input), IEC62053-22 Class 0.5S (5A CT), NMI (Australia) Approval
  • 35mm DIN Rail, 126x65x90mm
  • B&W LCD Display
  • Harmonics, Demands & TOU, Energy Log, Max/Min Log and Event Log
  • 2MB Log Memory
  • Modbus RTU
  • 1xRS-485
  • 1xSS Pulse Output, Optional 3xDI
PMC-350-C
  • Three-Phase LoRaWAN Energy Meter
  • IEC62053-22 Class 0.5S, IEC62053-21 Class 1 Compliant
  • 35mm DIN Rail, 72x70x95mm
  • B&W LCD Display
  • Harmonics, Demands & TOU, Max/Min Log, Energy Log, Freeze Log, Data Log and Event Log
  • Modbus RTU, LoRaWAN Class A/C at AS923/KR920 ISM Bands
  • 1xRS-485
  • Optional 4xDI, 2xDO, 4xRTD, 1xIr, 2xSS Pulse Output
PMC-352-C
  • Three-Phase LoRa Energy Meter
  • IEC62053-21 Class 1
  • 35mm DIN Rail, 36x65x90mm
  • LED Indicators
  • Harmonics, Demands and Event Log
  • Modbus RTU, LoRa with ISM Bands EU863-870, RU864-870, IN865-867, US902-928, AU915-928, AS920-923, AS923-925
  • 1xRS-485
  • 3xDI, 4xNTC Inputs
PMC-352-D
    • DC LoRa Energy Meter
    • IEC 62053-41: 2021 Class 1
    • 35mm DIN Rail, 36x65x90mm
    • LED Indicators
    • Demands and Event Log
    • Modbus RTU, LoRa with ISM Bands EU863-870, RU864-870, IN865-867, US902-928, AU915-928, AS920-923, AS923-925
    • 1xRS-485
    • 1xDC Voltage Input, 3xDC Current Inputs, 3xDI, 4xNTC, Optional 1xIr
PMC-230
  • Single-Phase Multifunction Meter
  • IEC62053-21 Class 1 (65A Direct Input), NMI (Australia) Approval
  • Internal 100A Disconnect Relay
  • 35mm DIN Rail, 72x68x90mm
  • B&W 8-digit LCD Display
  • Harmonics, Demands & TOU, Energy Log and Event Log
  • Modbus RTU
  • 1xRS-485
  • 3xDI, 1xSS Pulse Output
PMC-220
  • Low-Cost Single-Phase Multifunction Meter
  • IEC 62053-21:2020 Class 0.5 (63A Direct Input)
  • NMI M6-1 Class 1
  • 35mm DIN Rail, 36x65x90mm
  • 6½ Digit B&W LCD Display
  • Modbus RTU
  • 1xRS-485
  • 1xSS Pulse Output
PMC-518D
  • Intelligent Remote Terminal Unit
  • 35mm DIN Rail, 180x94.5x57.5mm
  • Backlit B&W LCD Display
  • Status Monitoring, Remote Control
  • Modbus RTU
  • 1xRS-485
  • 18xDI, Optional 4x/6x/8xDO, 2xAI
PMC-330
  • Three-Phase Energy Meter
  • IEC 62053-21 Class 1 (80A Direct Input)
  • 35mm DIN Rail, 126x90x75mm
  • B&W LCD Display
  • Demands & TOU, Max/Min Log and Event Log
  • Modbus RTU
  • 1xRS-485
  • 1xSS Pulse Output, Optional 2xDO, 2xDI
PMC-509
  • Multi-Circuit Multifunction Monitor
  • Class 0.5S Revenue Metering with Bi-directional Measurements
  • 35mm DIN Rail, 180x94.5x57.5mm
  • Backlit B&W LCD Display
  • Demands and Event Log
  • 8MB On-board Memory
  • Modbus RTU
  • 1xRS-485
  • 4xDI, Optional 3xRTD
