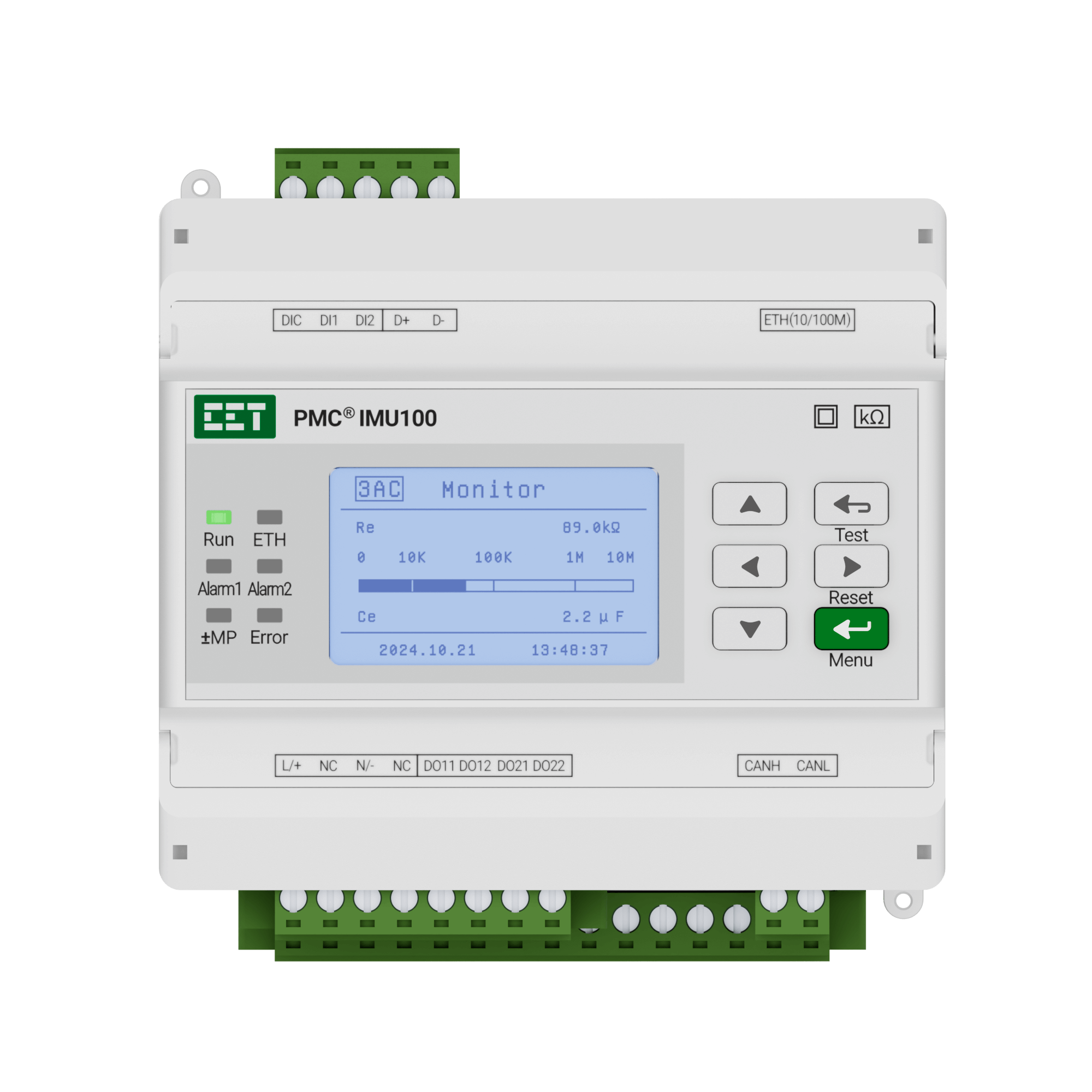

IMU100
    • Insulation monitoring in accordance with IEC 61557-8
    • Automatic adaptation to the system leakage capacitance
    • Insulation monitoring for unearthed AC (0-690V) or DC (0~1000V) system
    • The monitoring range for Insulation Resistance is between 500 Ω and 10 MΩ
    • Two separate configurable warning and alarm with range from 1kΩ to 10 MΩ
    • Disconnection Monitoring
    • 256 SOE events time-stamped to 1ms resolution
    • View Details...

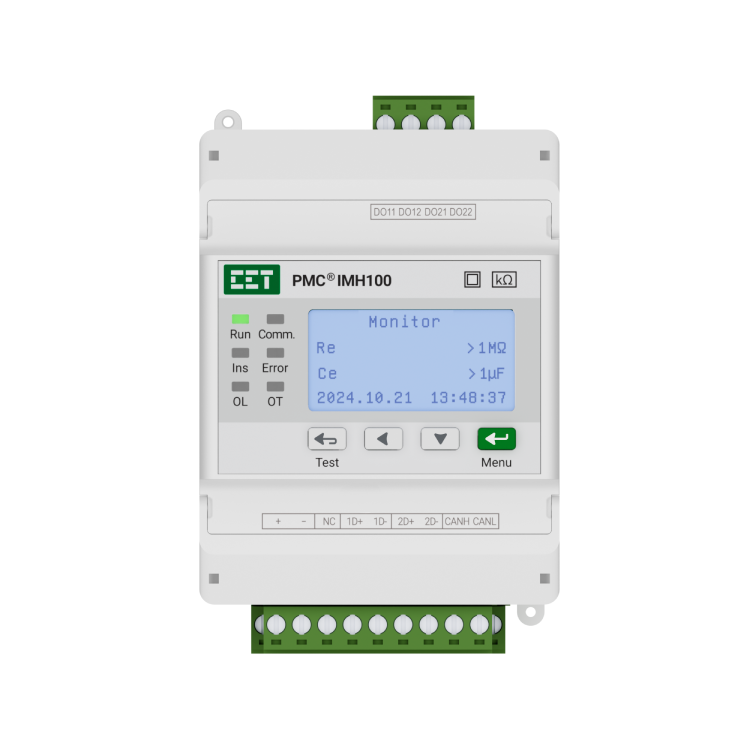

IMH100
    • Insulation monitoring in accordance with IEC 61557-8 for medical IT systems
    • Large, backlit, easy to read LCD display
    • Generate pulse signals for fault location
    • 1xVoltage Input for Single-phase IT Systems, 1xLoad Current Input + 1xTemperature Input for Isolation Transformers
    • The monitoring range for Insulation Resistance is between 10KΩ and 1MΩ
    • 1xCAN, 2xRS-485 and 2xDO
    • Device Operating Time (Running Hours)
    • Disconnection detection for system wiring, PE, CT and Temperature Input
    • 256 SOE events time-stamped to 1ms resolution
    • Time Sync. via Modbus and battery-backed RTC
    • Easy installation with DIN-Rail mounting, no tools required
    • View Details...
