PMC-D961MD
Product Overview

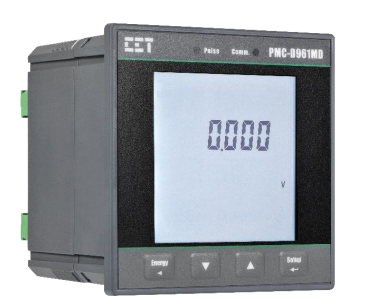

The PMC-D961MD DC Multifunction Meter is CET's latest offer for the low-cost DC metering market. Housed in an industry standard DIN form factor measuring 96x96x92mm, it is perfectly suited for industrial, commercial and utility DC metering applications. The PMC-D961MD complies with Class 0.5 kWh Accuracy and features quality construction, multifunction measurements and a bright, easy to read LCD display. The PMC-D961MD comes standard with two Front Panel LED indicators for Energy Pulsing and Communication. It provides 4xDI for status monitoring, 2xDOfor Control and Alarming, and 1xSS Pulse Output for kWh Energy Pulsing applications. The standard SOE Log records meter events such as power-off, Setpoints, setup changes and DI operations in ±1ms resolution. With a standard RS-485 port and an optional 10Base-T/100Base-TX Ethernet Port support, the PMC-D961MD becomes a vital component of an intelligent, multifunction monitoring solution for any DC Power and Energy Management systems.
